The 1154 series valve is a TTV wafer butterfly valve, with a ductile iron body and FKM seat. It is used to close or regulate acid, grease, hydrocarbon, petrol, super, argon, glycerine, oil, carbon dioxide and biogas networks.

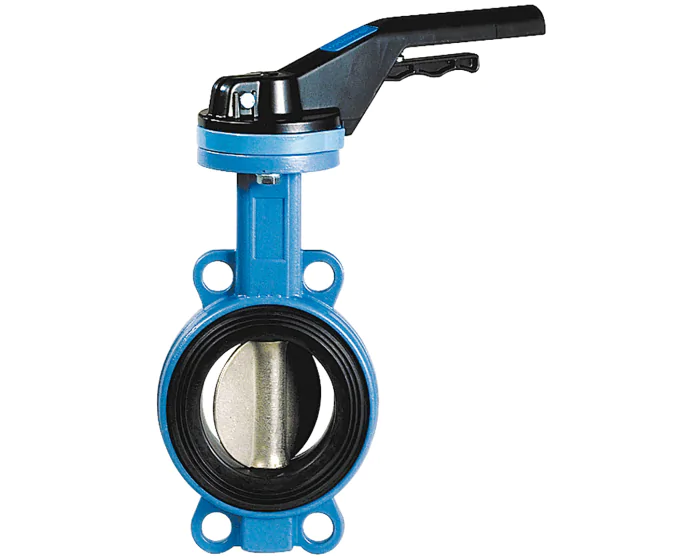

Reference 1154: TTV butterfly valve Our reference 1154 is a wafer butterfly valve from the TTV brand range. Different elements and materials are used to build this valve: its body is in EN GJS 500-7 ductile iron and is Rilsan-coated with 250-300 microns thick paint and RAL 5024 colour the seat is in FKM, for wide fluid compatibility as well as high temperature tolerance (up to +150 °C with chemicals and abrasives) the disc is in CF8M stainless steel We keep sizes DN32-40 to DN300 in stock, while sizes DN350 to DN600 are available on request. The main technical characteristics of the 1154 TTV wafer butterfly valve can be listed as follows: Mounting between flanges PN10/16 and class 150 (PN20) Long neck for isolation Full crossing stem Lever from DN32 to DN300, bare shaft from DN350 or mounted gearbox for DN350 and DN400 ISO 5211 mounting pad Maximum service pressure: 16 bar up to DN300, 10 bar for bigger sizes Range of temperatures tolerated: from -5 °C up to +180 °C This TTV wafer butterfly valve can be used in applications with multiple types of fluids: acids, grease, hydrocarbons, petrol, premium gasoline, argon, glycerine, oil, carbon dioxide, biogas.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | ISO 10631 - EN 593 |
| Type of paint | Rilsan |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Brand | TTV |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Square, star (mm) | Square 8 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Acids |
| Kv (m³/h) | 36.0 |
| Seat | FKM |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 180 |
| TS min (°C) | -5 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 10 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Handle | 1154040 | S1009552 |
€177.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Handle | 1154050 | S1009553 |
€177.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Handle | 1154065 | S1009554 |
€200.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Handle | 1154080 | S1009555 |
€223.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Handle | 1154100 | S1009556 |
€265.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Handle | 1154125 | S1009557 |
€384.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Handle | 1154150 | S1009558 |
€508.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Handle | 1154200 | S1009559 |
€725.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Handle | 1154250 | S1009560 |
€1,433.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Handle | 1154300 | S1009561 |
€1,961.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' Bare shaft | 1154350 | S1009562 |
€2,646.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' Gears | 1154352 | S1009563 |
€2,830.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' Bare shaft | 1154400 | S1009564 |
€3,346.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' Gears | 1154402 | S1009565 |
€3,530.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN450 - 18'' Bare shaft | 1154450 | S1009566 |
€7,082.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN500 - 20'' Bare shaft | 1154500 | S1009567 |
€8,401.81
(excl. btw)
|
add to cart |
